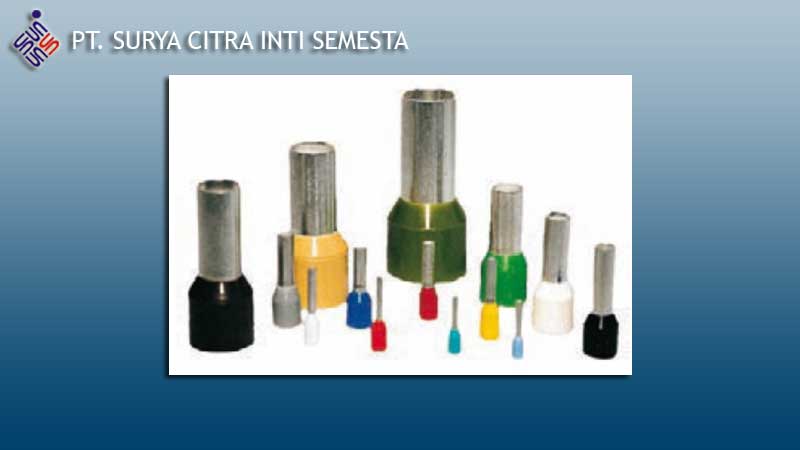

Wire end ferrules

Wire and ferrules ensure the long-term quality of electrical connections. Another advantage is their usefulness during installation. The wide range of products embraces wire end ferrules with or without plastic collars and twin wire end ferrules in all the colours normally required by users.

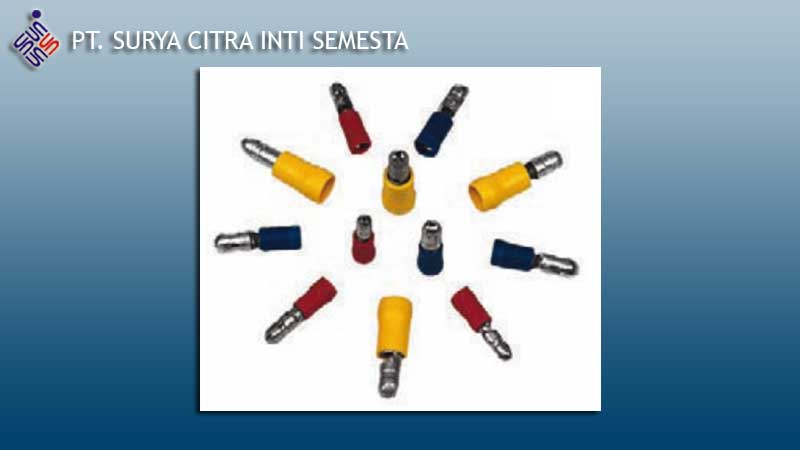

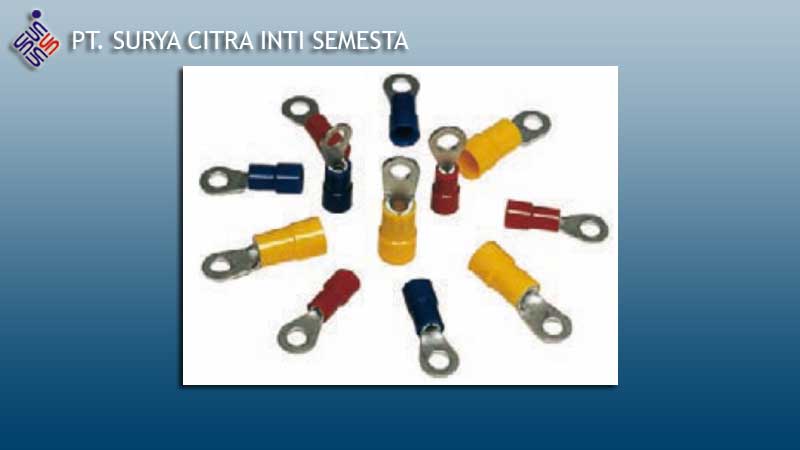

Insulated cable lugs

Insulated cable lugs ensure the long-term quality of electrical connections. Most of the products in the range (apart from the butt connectors) have a conical inlet. This guarantees optimum entry of the conductor as the stands are automatically centred.

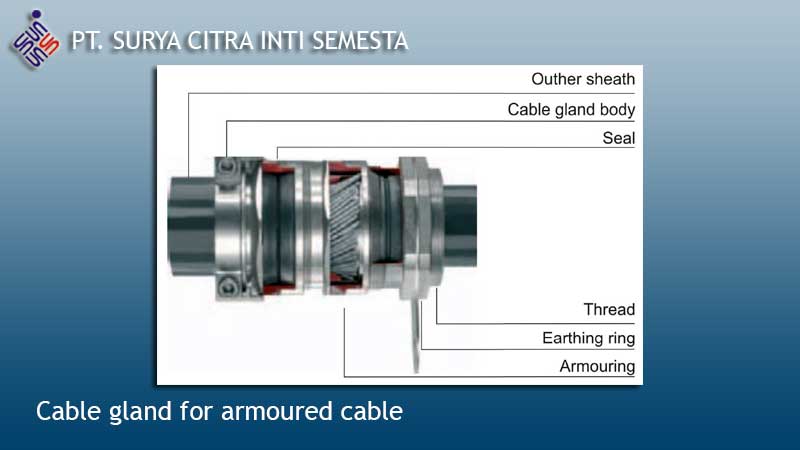

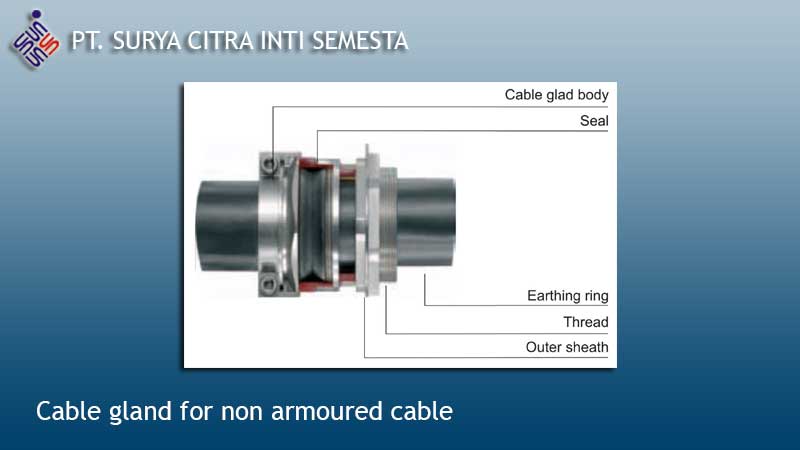

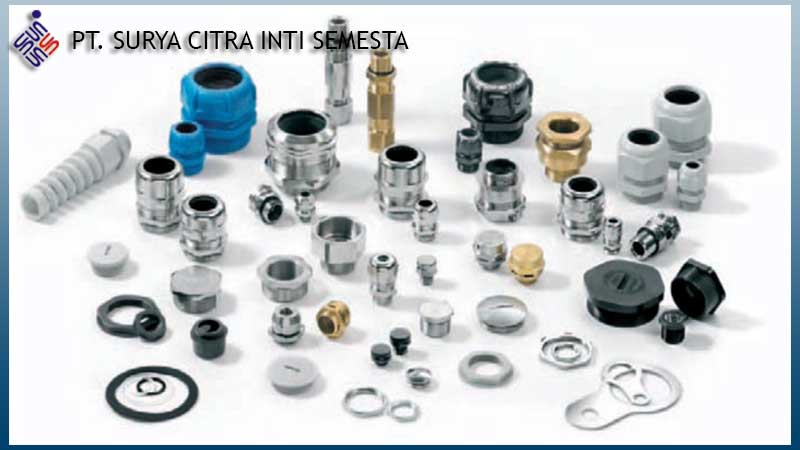

Cable glands

We offer a coordinated assortment of cable glands for a wide range of applications :
- Control units
- Cable glands made of plastic and brass
- EMC cable glands
- For hazardous areas in accordance with EN 50014, EN 50019 and ATEX
- VDE, CSA and UL approvals
Cable entries, for example, in enclosures for heavy-duty connectors, can be easily and safely accomplished.

The instructions for installation in hazardous areas comply with the standards CENELEC EN 50014 - 50018 - 50019

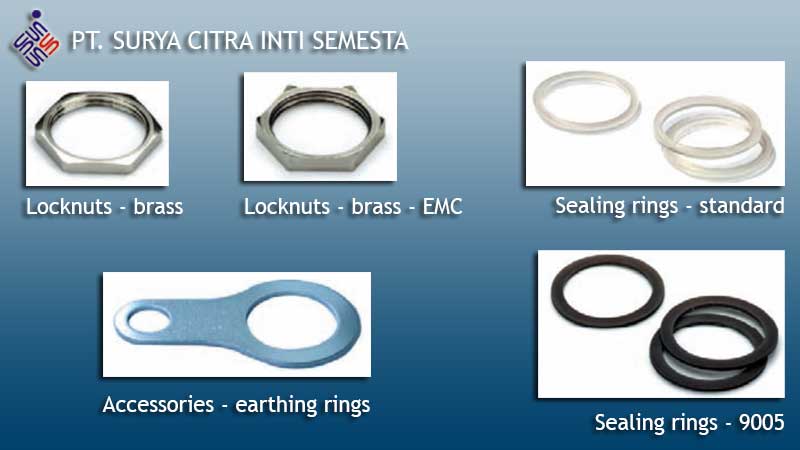

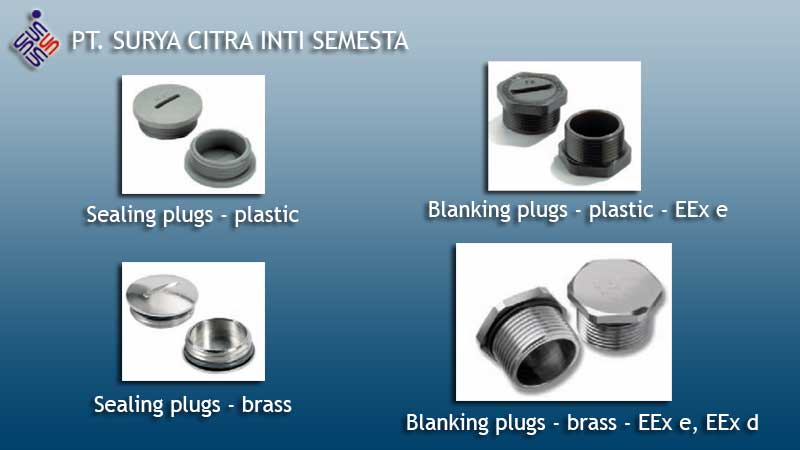

- Increased safety in accordance with EN 50019; screwed directly into the housing or utilising a locknut. Unused entries must be sealed with a certified blanking plug.
- Flameproof in accordance with EN 50018; screwed directly into the housing with five complete turns of the thread (approx. 8 mm). Unused entries must be sealed with a certified blanking plug.
