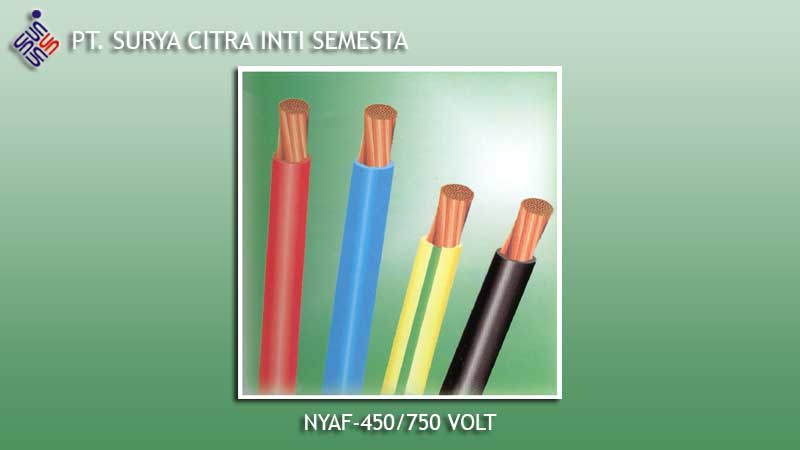

NYAF-450/750 VOLT

Feature
These low voltage flexible cables are applied for drying rooms, fixed installation and distribution panel installation and distribution panel instead of NYA cable.
Construction
Conductor
Stranded annealed copper conductor with cross section 0.5 mm2 up to 400 mm2.
Insulation
Extruded colored PVC, capable for the operating continuously maximum temperature of the cable.
Color : Green/Yellow, Blue, Red, Black and Yellow.
Specification : SPLN 42-3 : 1992 & SNI 04-3236-1992 (other specifications are available upon request)

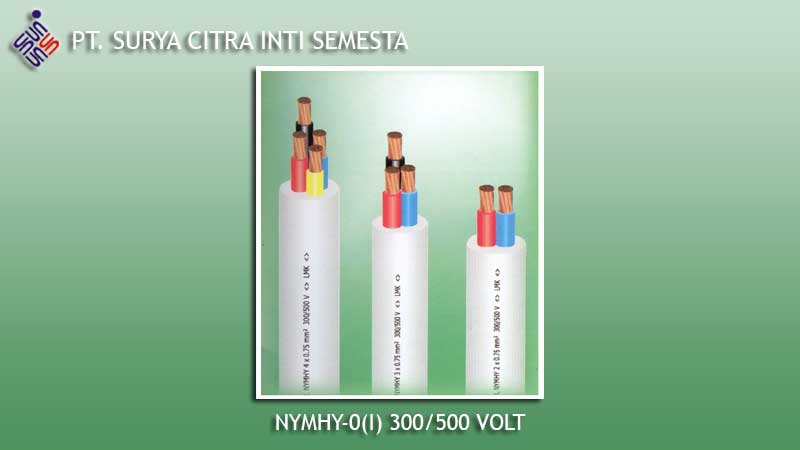

NYMHY-0(I) 300/500 VOLT

Feature
These low voltage flexible cables are applied for light mobile appliances with medium mechanical stresses and heating appliances in dry rooms, kitchens and household appliances in humid rooms.
Construction
Conductor
Stranded annealed copper conductor with cross section 0.75 mm2 up to 2.50 mm2.
Insulation
Extruded colored PVC, capable for the operating continuously maximum temperature of the cable.
Sheath : extruded white PVC, suitable for the operating temperature of the cable.
Identification of cores : Complying with system O/I (other colors on request)
Specification : SPLN 42-6-2 : 1991 & SNI 04-3234-1992 (other specifications are available upon request)

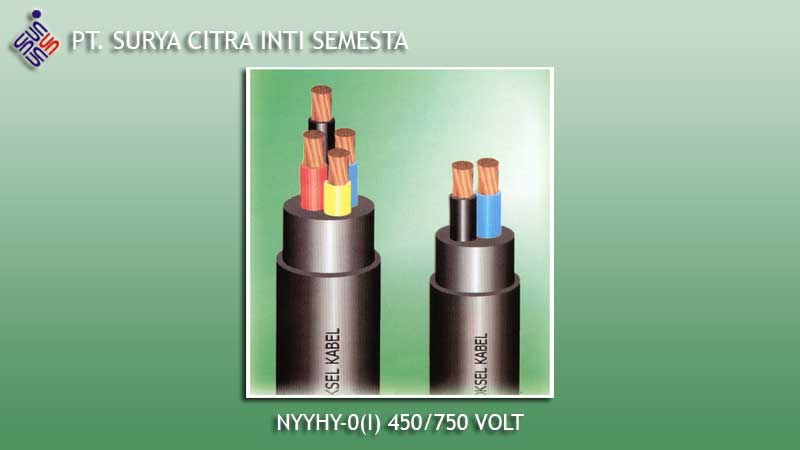

NYYHY-0(I) 450/750 VOLT

Feature
These low voltage flexible cables are applied for indoor and outdoor, especially for light mobile appliances.
Construction
Conductor
Stranded flexible annealed copper conductor.
Insulation : Extruded colored PVC, capable for the operating continuously maximum temperature of the cable.
Sheath : Extruded Black PVC, suitable for the operating temperature of the cable.
Identification of cores : Complying with system O/I. (other colors on request with cores in different colors or numbering code figures).
Specification : Factory specification (other specifications are available upon request)

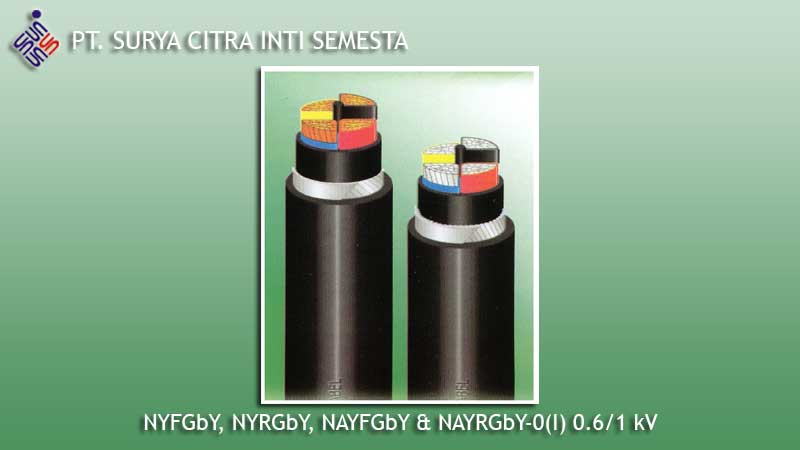

NYFGbY, NYRGbY, NAYFGbY & NAYRGbY-0(I) 0.6/1 kV

Feature
These low voltage cables are applied for indoor, outdoor and underground
Construction
Conductor
NYFGbY and NYRGbY : solid, stranded or sectoral shape annealed copper conductor.
NAYFGbY and NAYRGbY : Solid, stranded or sectoral shape aluminium conductor.
Insulation : Extruded colored PVC, capable for the operating continuously maximum temperature of the cable.
Inner Sheath : Extruded Black PVC Filter.
Armour NYFGbY and NAYFGbY : Galvanized steel flat and wrapped with galvanized steel tape.
Armour NYRGbY and NAYRGbY : galvanized steel wire and wrapped with galvanized steel tape.
